Patch Antenna Design and Measurement

Course project of CUHK's ELEG3204 Wireless Technology and Systems. Individual project. Spring 2015.

Works

• Designed a patch antenna using ADS
• Fabricated the patch antenna
• Measured the specifications of the antenna

Results

Image below shows the fabricated patch antenna.

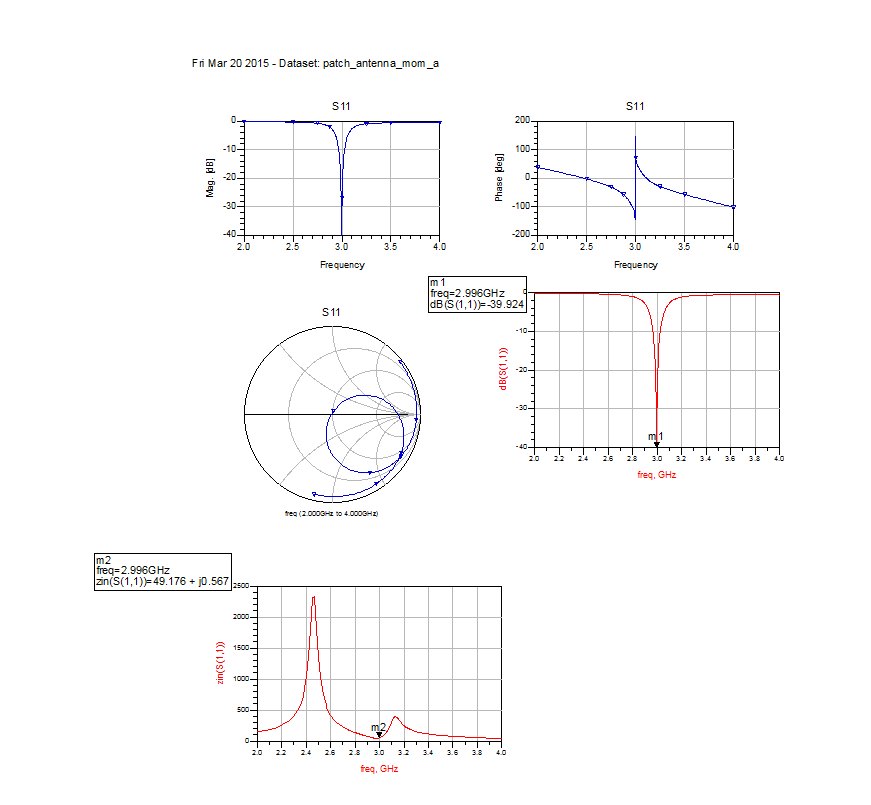

Some simulation results

Here is the report of the project.
